RVC P5330

Built for High-Accuracy Industrial Measurement

Binocular structured-light imaging steadily outputs high-quality 3D point clouds for assembly, dispensing, grinding, welding, cutting, and dimensional inspection.

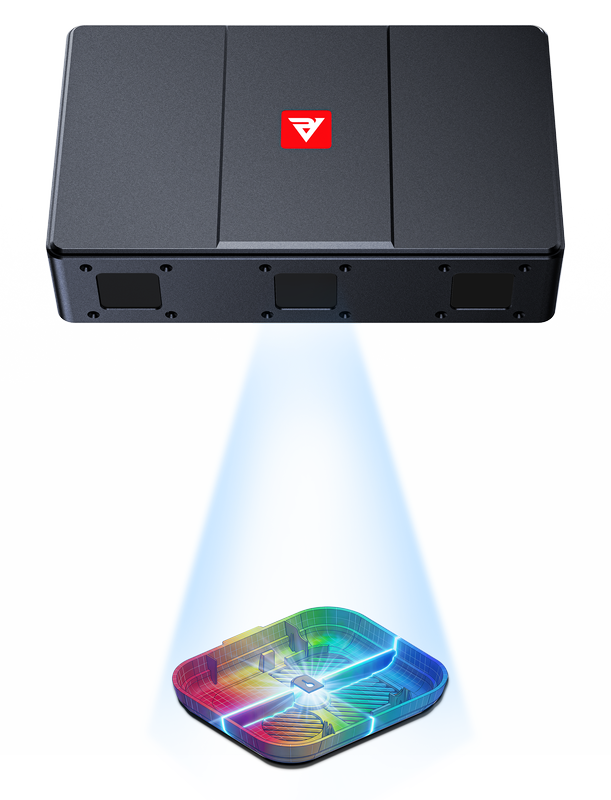

RVC-P5330 3D industrial camera scanning a workpiece

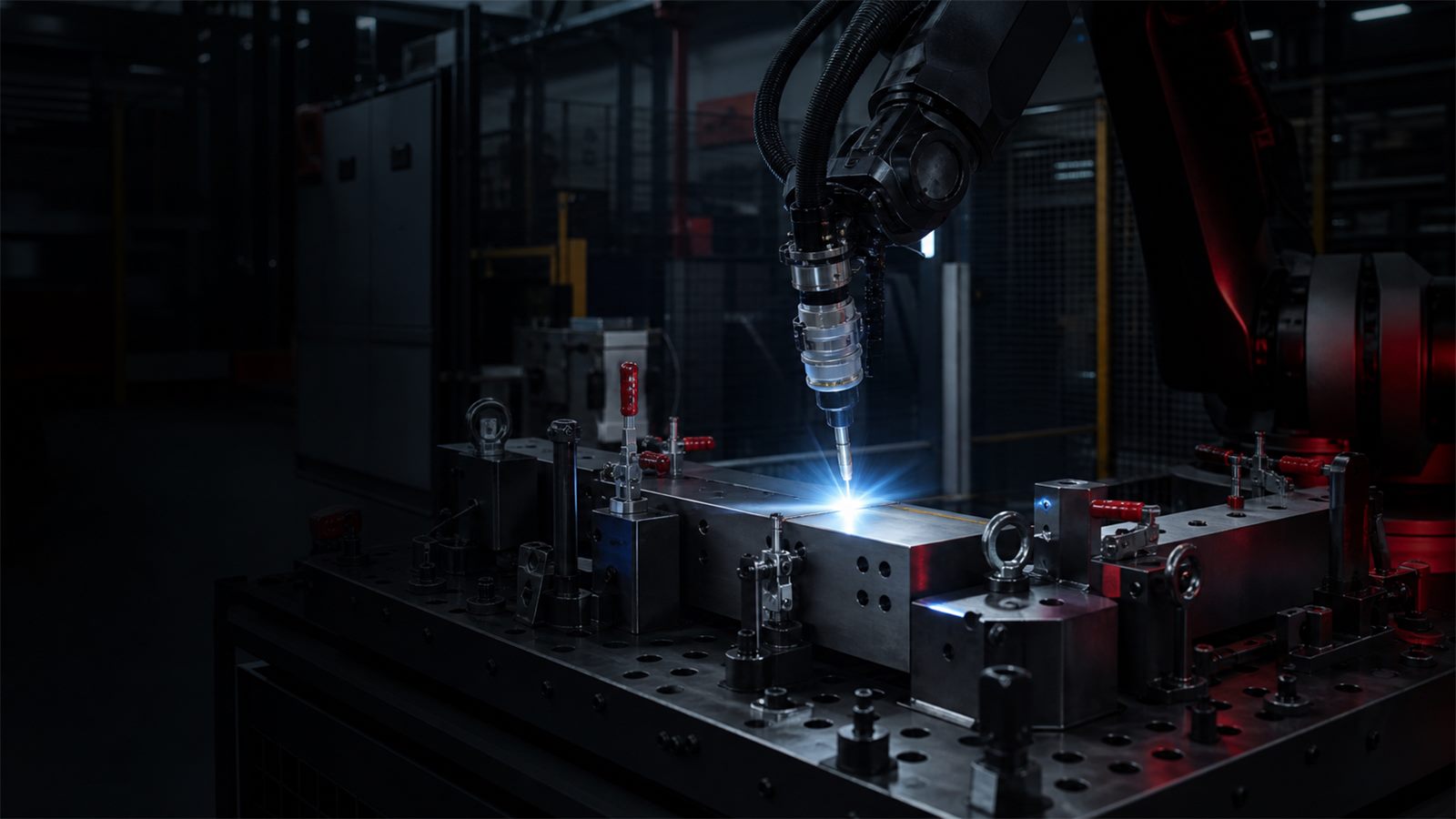

Welding Positioning Guidancereal operation site
01 / Key Challenges

Welding Positioning & Guidance

Fixture misalignment and incoming-part variation may shift the weld seam, resulting in weld deviation, missed welds, and inconsistent welding paths.

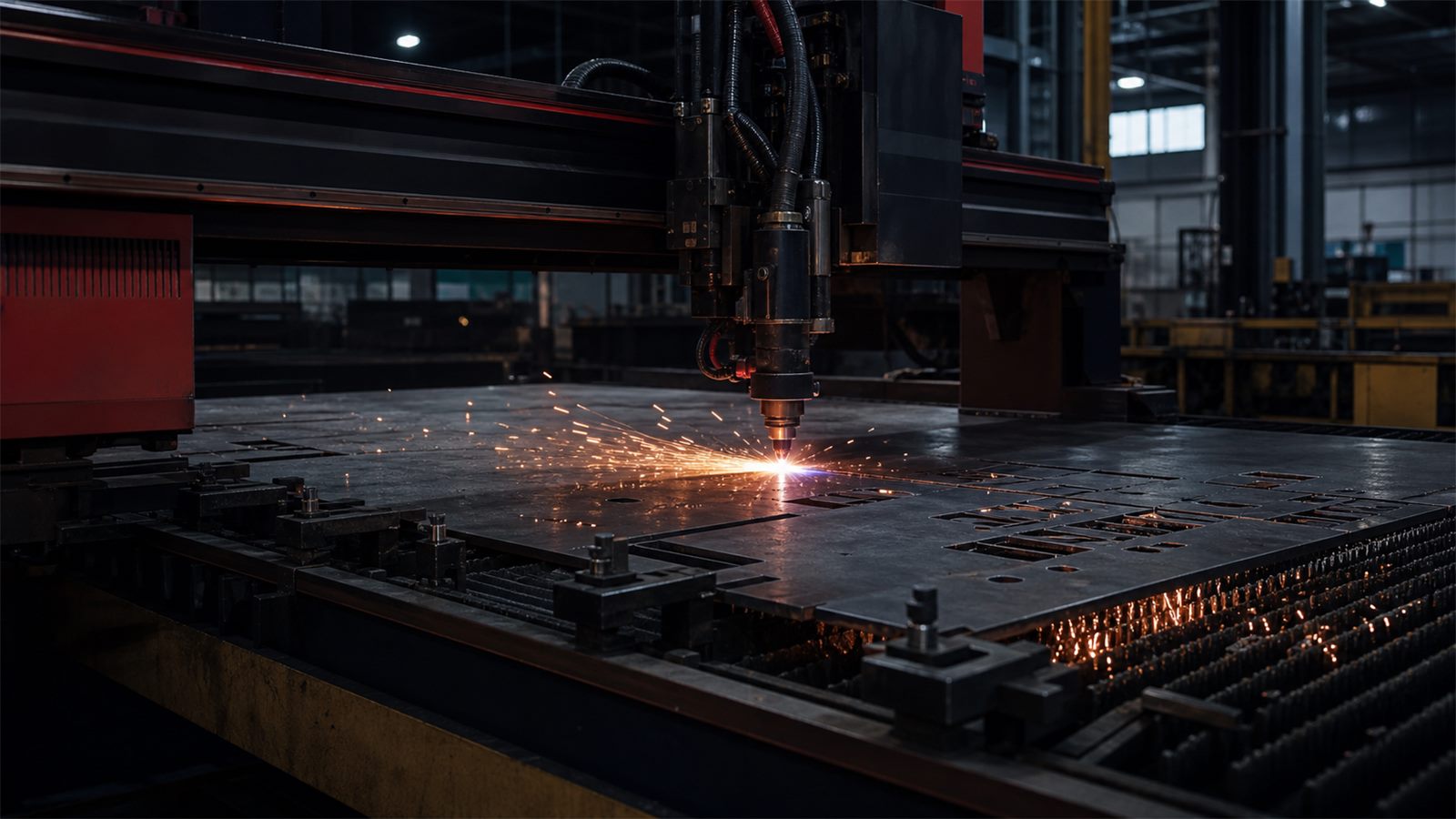

Steel Plate Cutting Inspectionreal operation site
02 / Key Challenges

Steel Plate Cutting Inspection

Variations in steel plate dimensions, edges, and contours make it difficult to reliably detect dimensional deviations, burrs, and notches through manual inspection.

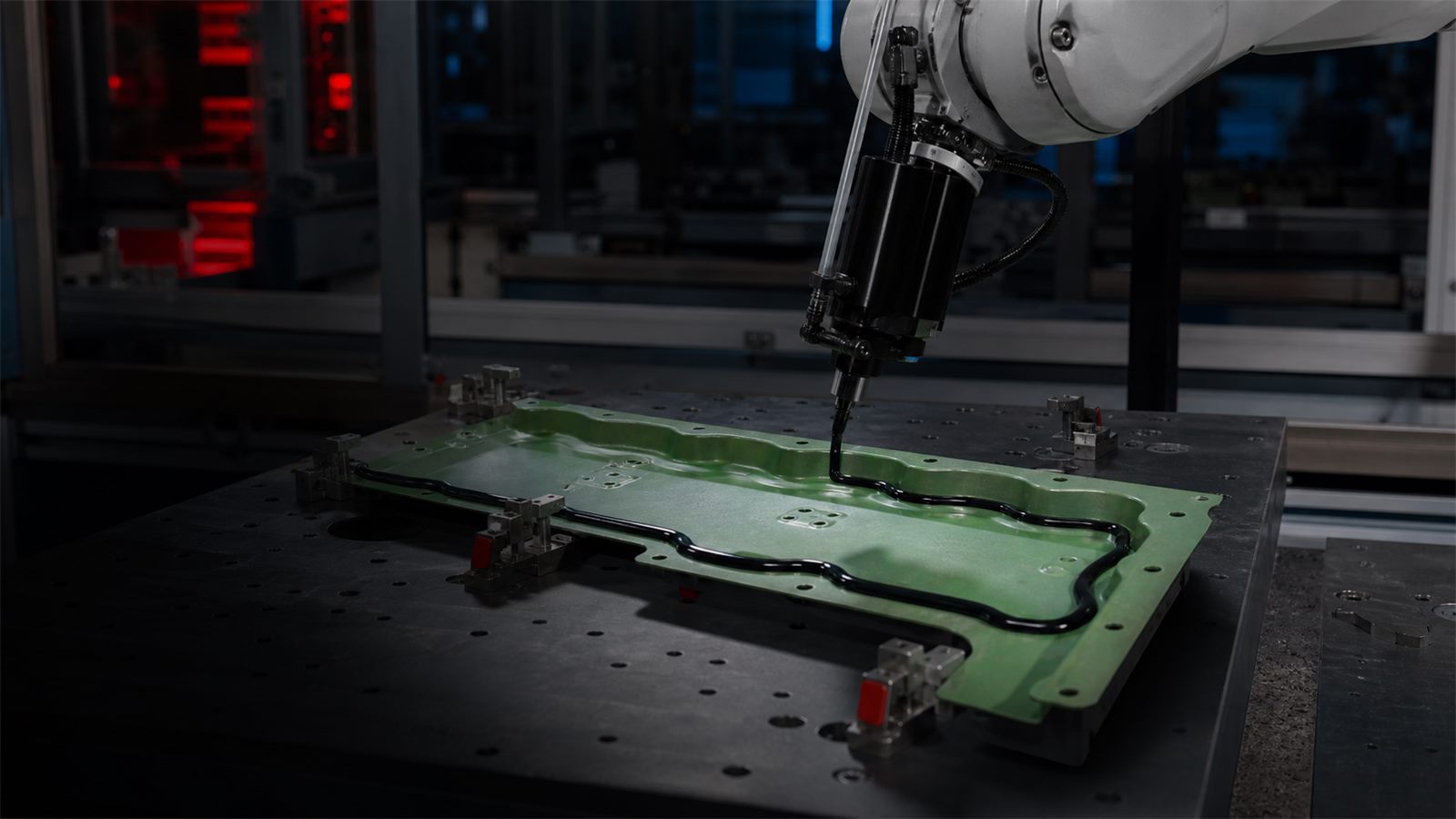

Dispensing Path Guidancereal operation site
03 / Key Challenges

Adhesive Bead Path Guidance

Part misalignment or contour variations may cause bead deviation, gaps, excess adhesive, or uneven application.

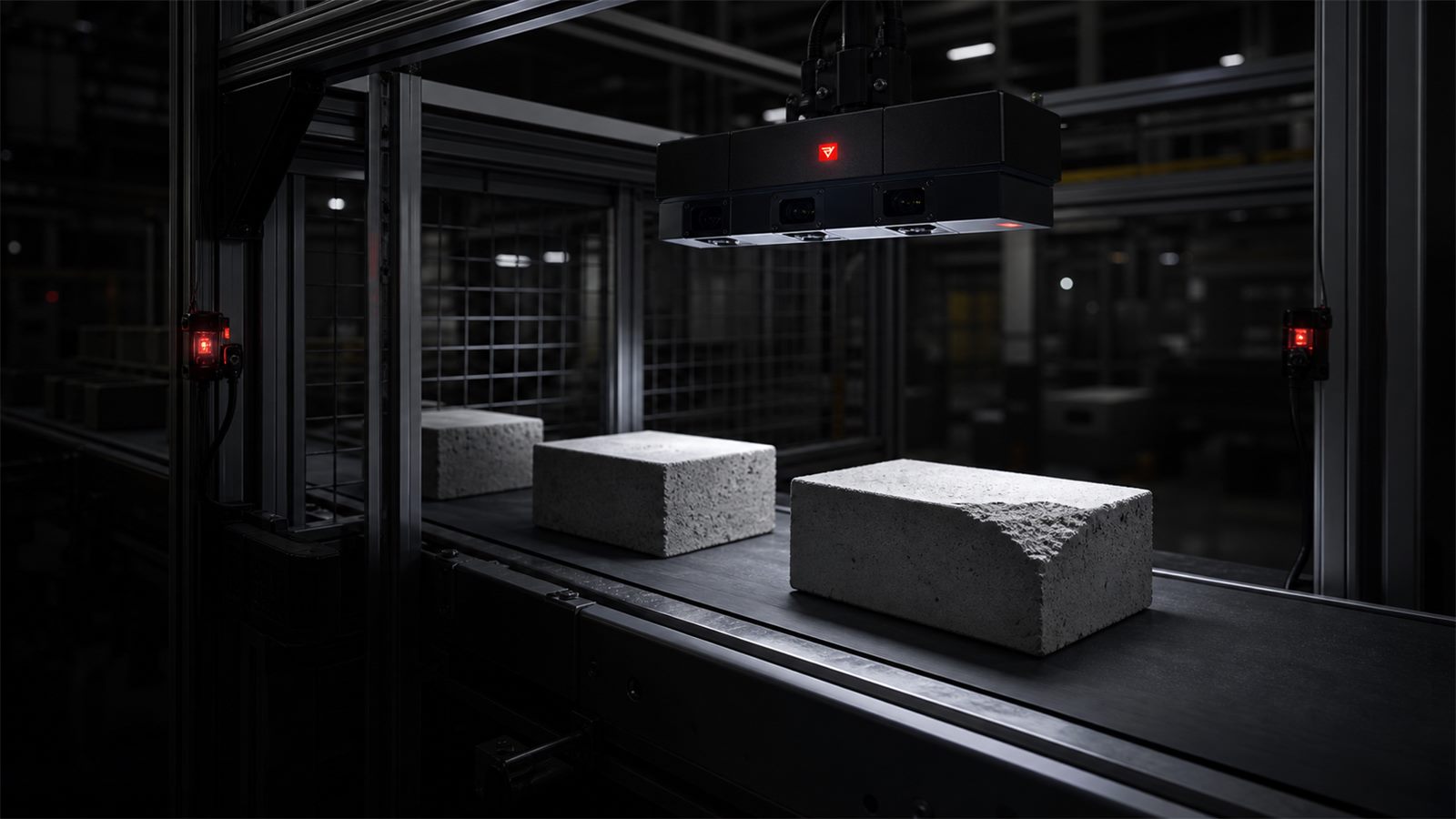

Cement Brick 3D Inspectionreal operation site
04 / Key Challenges

3D Cement Brick Inspection

Dimensions, chipped edges, surface damage, and uneven surfaces are difficult to reliably identify with 2D imaging, making consistent quality control challenging in high-volume production.

Product Features

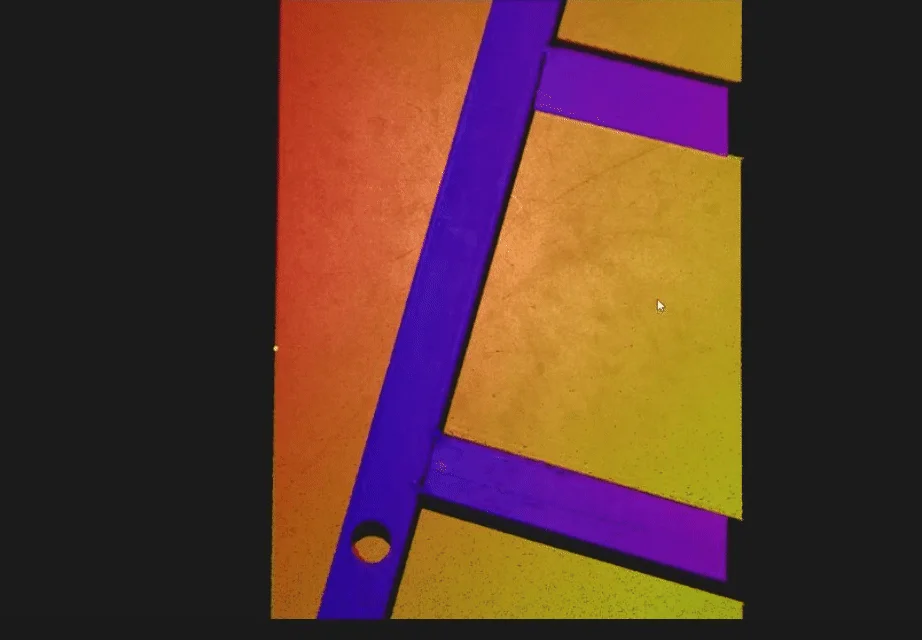

Welding Positioning Guidancepoint-cloud image
Typical Point Cloud Examples/ Welding Positioning & Guidance

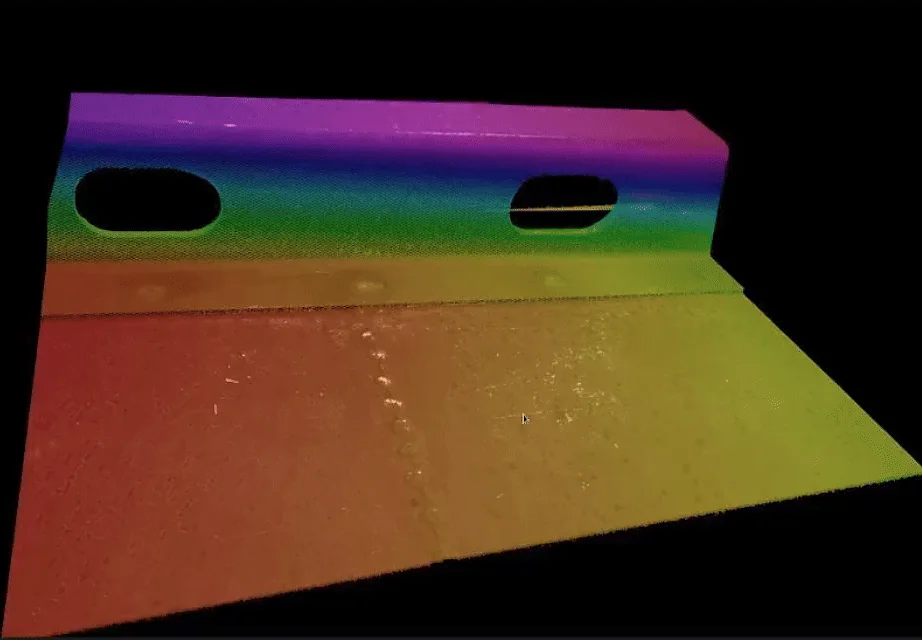

Steel Plate Cutting Inspectionpoint-cloud image
Typical Point Cloud Examples/ Steel Plate Cutting

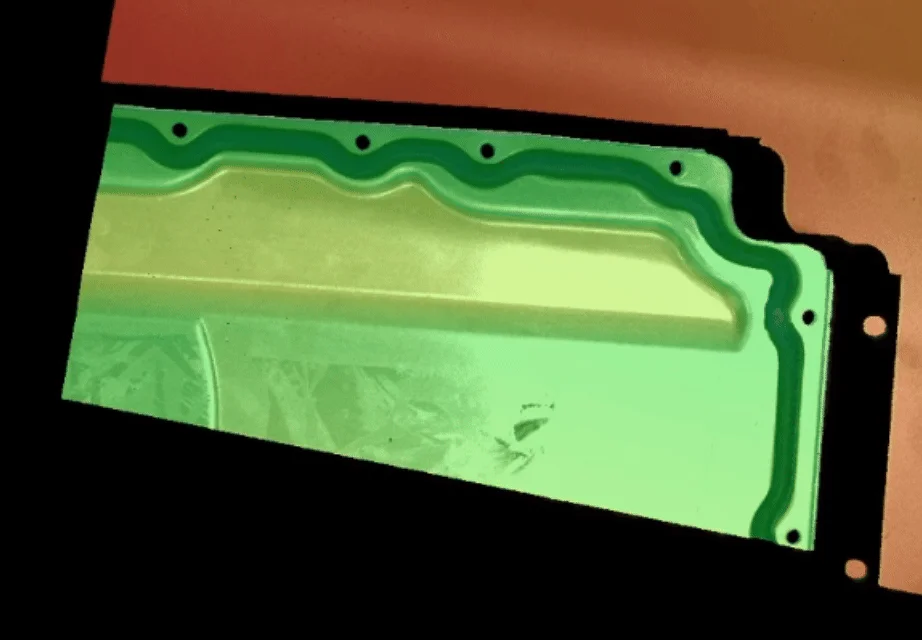

Dispensing Path Guidancepoint-cloud image
Typical Point Cloud Examples/ Adhesive Bead Path

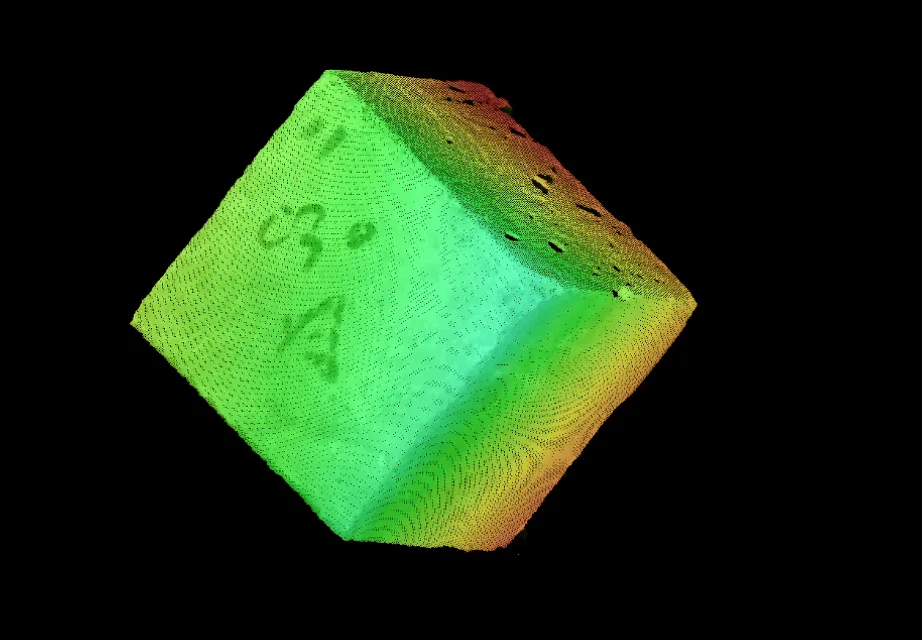

Cement Brick 3D Inspectionpoint-cloud image
Typical Point Cloud Examples/ Cement Brick

Design for High-Precision Industrial Measurement Precision-Guided Welding Positioning

The 5 MP binocular camera captures fine weld-seam and boundary details, enabling accurate and consistent positioning for robotic welding.

5 MP High-Resolution For Steel Plate Inspection

Delivers clear, complete 3D point clouds for real-time verification of cutting accuracy.

380-580mm Optimal Working Distance

Covers typical workstation distances for precise adhesive bead path guidance.

5MP Binocular 3D Inspection

Measures brick dimensions and detects surface defects to reduce missed defects and false positives.

Automation Applications

Picking Guidance

Dimensional Inspection

Cutting

Grinding

Spraying

Positioning & Guidance

Assembly

Adhesive Dispensing

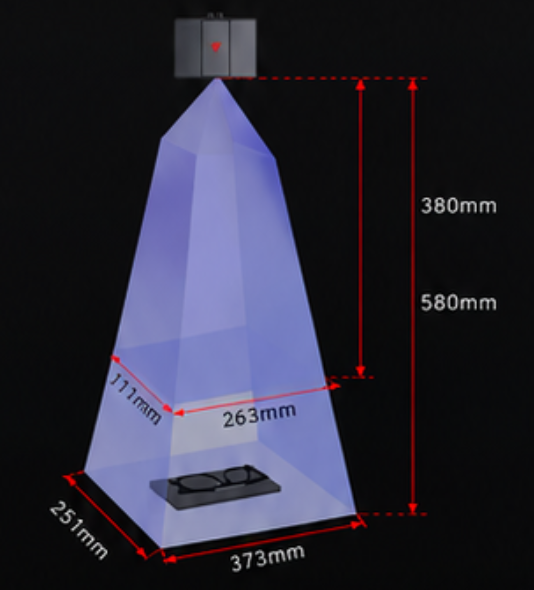

RVC-P5330 working-distance and FOV diagram
ParameterRVC-P5330
Minimum Capture Time2.0 s/frame
Resolution5.0 MP binocular
Working Distance Range380-580 mm
Near FOV FOV263×171 mm @380
Far FOV FOV373×252 mm @580
XY Resolution0.11-0.17 mm
Z-Axis Single-Point Repeatability0.025-0.046 mm
Z-Axis Area Repeatability0.0017-0.0044 mm
Light SourceBlue LED
Communication InterfaceGigabit Ethernet
Camera Weight1.7 kg
Camera Dimensions250×135×57 mm
Operating Voltage / CurrentDC 24V / 3.75A
Protection RatingIP65
Operating Temperature0-45℃
Operating Humidity20-80% RH，No condensation
Development LanguagesC / C++ / C# / Python
Development PlatformsLinux / Windows
