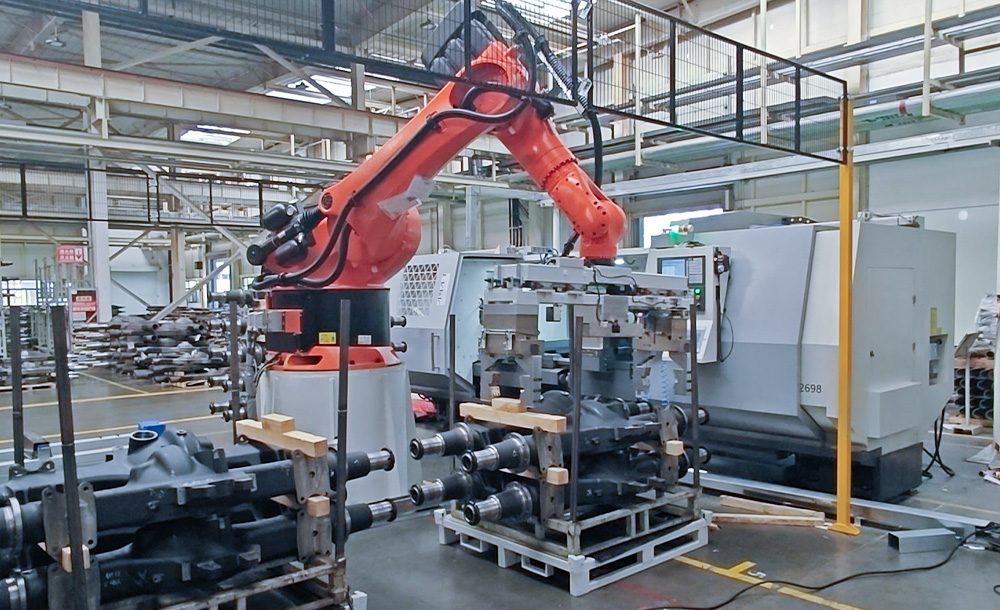

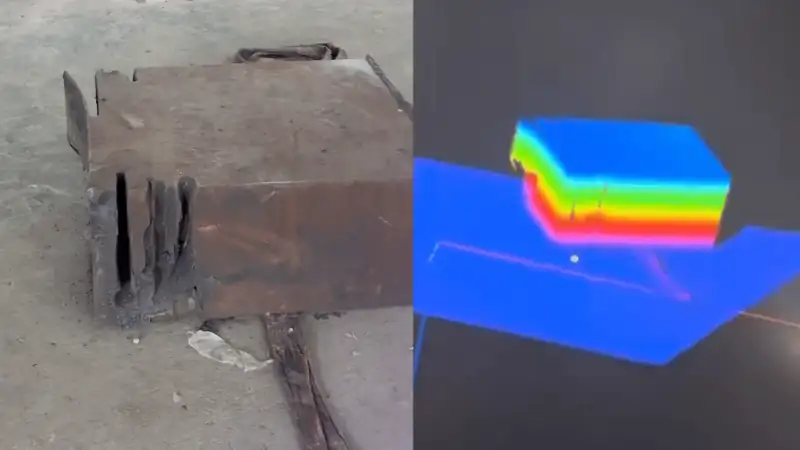

Large-workpiece localization
Workpieces exceeding the coverage of a small FOV, combined with continuously changing positions and orientations, require repeated scans and data registration, increasing the complexity of the localization process.

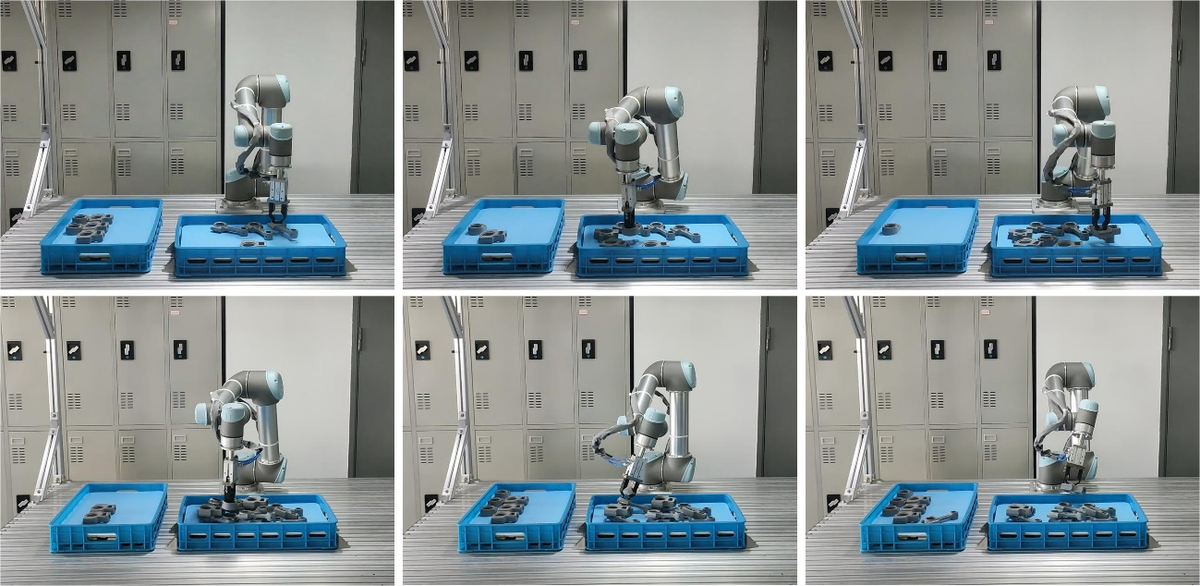

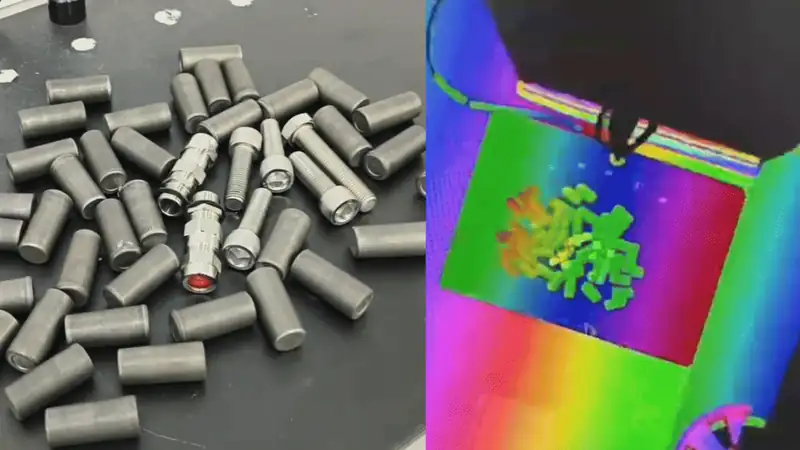

Large-FOV Bin Picking
Workpieces in large bins are often stacked, occluded, and widely distributed, while visually similar parts may require RGB color and texture information for accurate identification and picking.

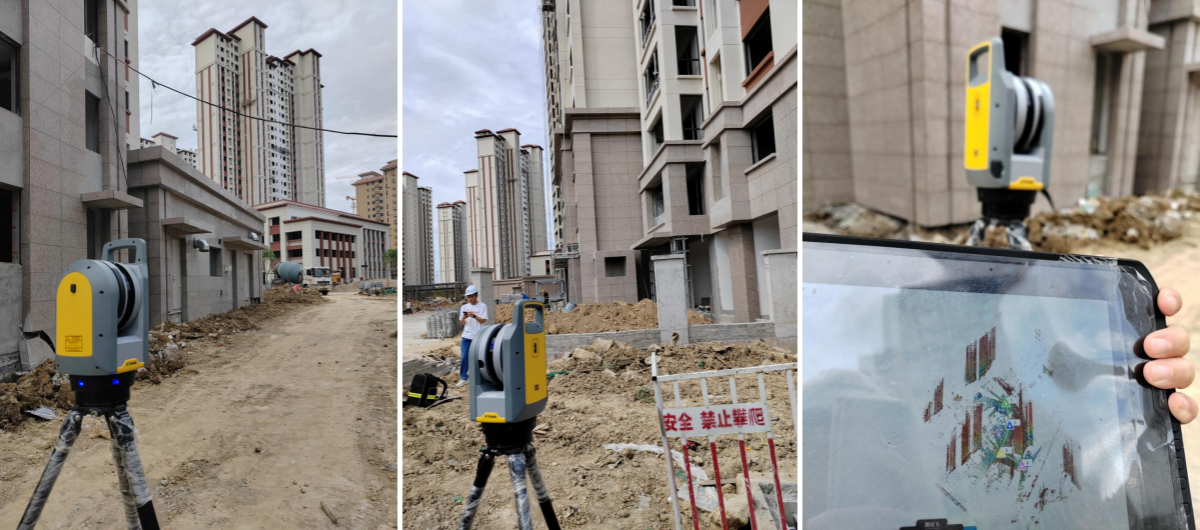

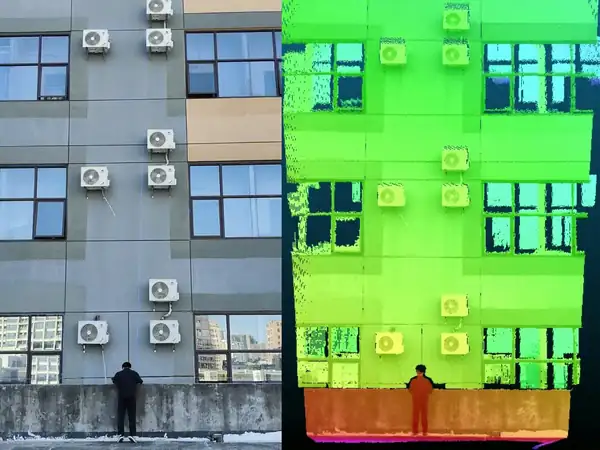

Building & Large-Scale Component Measurement
Large structures and components often require long-range 3D measurement. A limited field of view may require frequent camera repositioning and multiple scans, increasing measurement time and complexity.

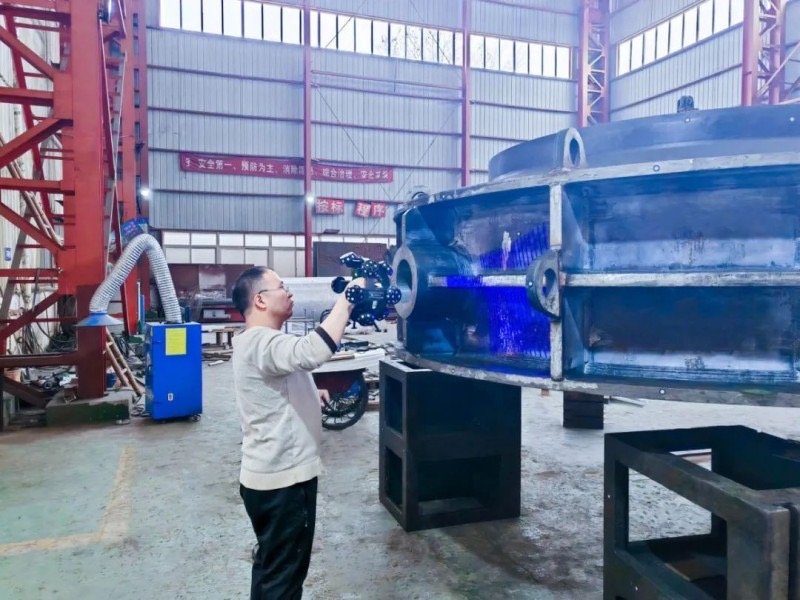

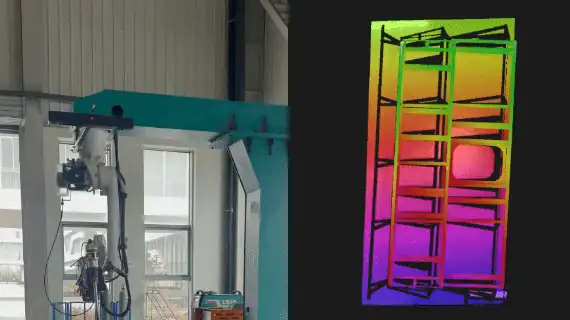

3D Reconstruction of Large-Scale Objects
Large, wide, and geometrically complex objects often exceed the coverage of a limited field of view. Multiple scans are thus needed to capture the full surface, which increases scanning time and the effort involved in data registration.
Product Features

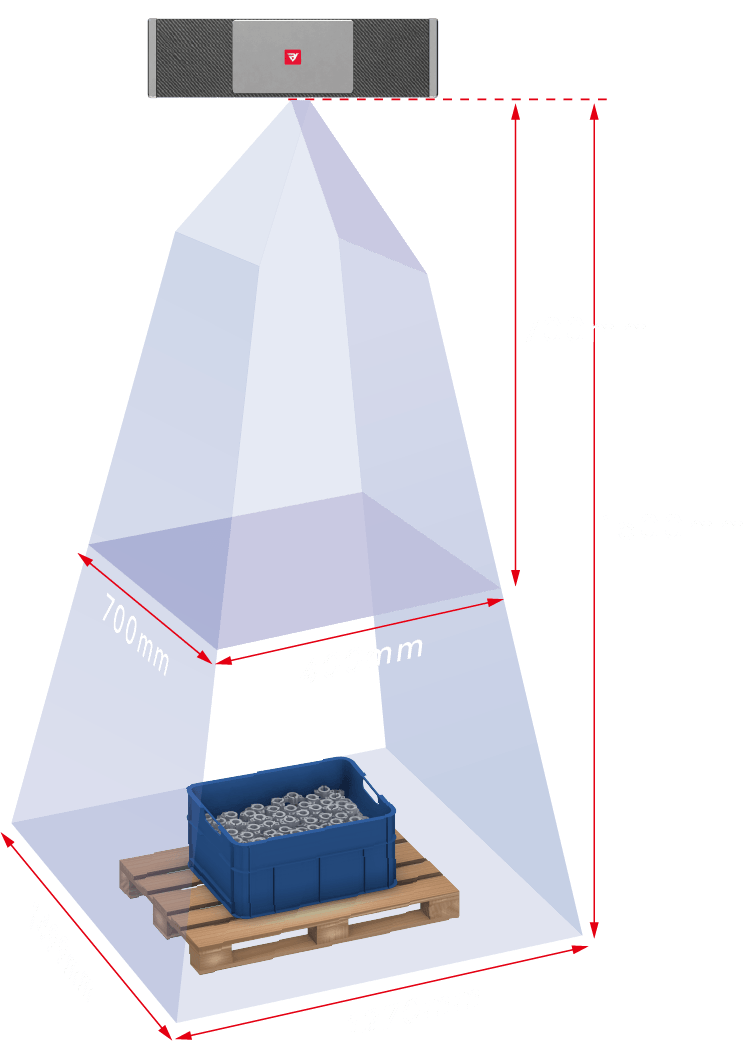

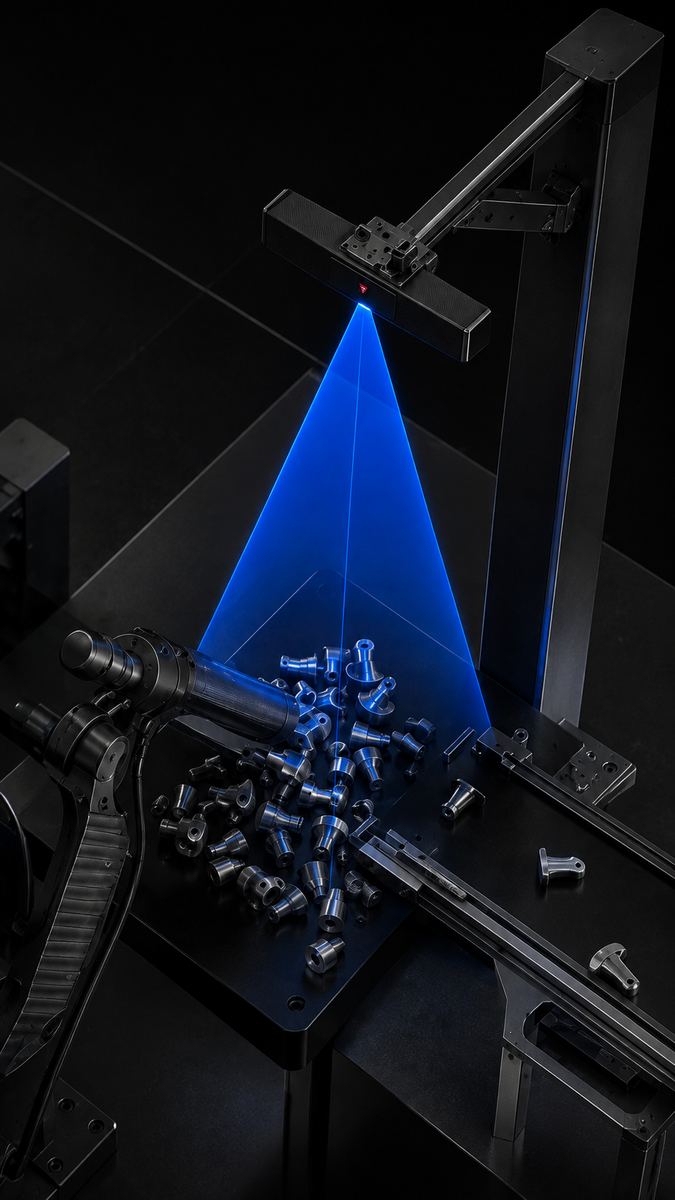

Dual-Model Coverage 700–3,000 mm
M51000C and M52000C cover medium-to-long-range applications across different workstation configurations, providing a complete 3D view for large-workpiece localization.
2448×2048 Binocular Color Imaging
Color, texture, and depth data are captured simultaneously, supporting object recognition, instance segmentation, and grasp-pose estimation.

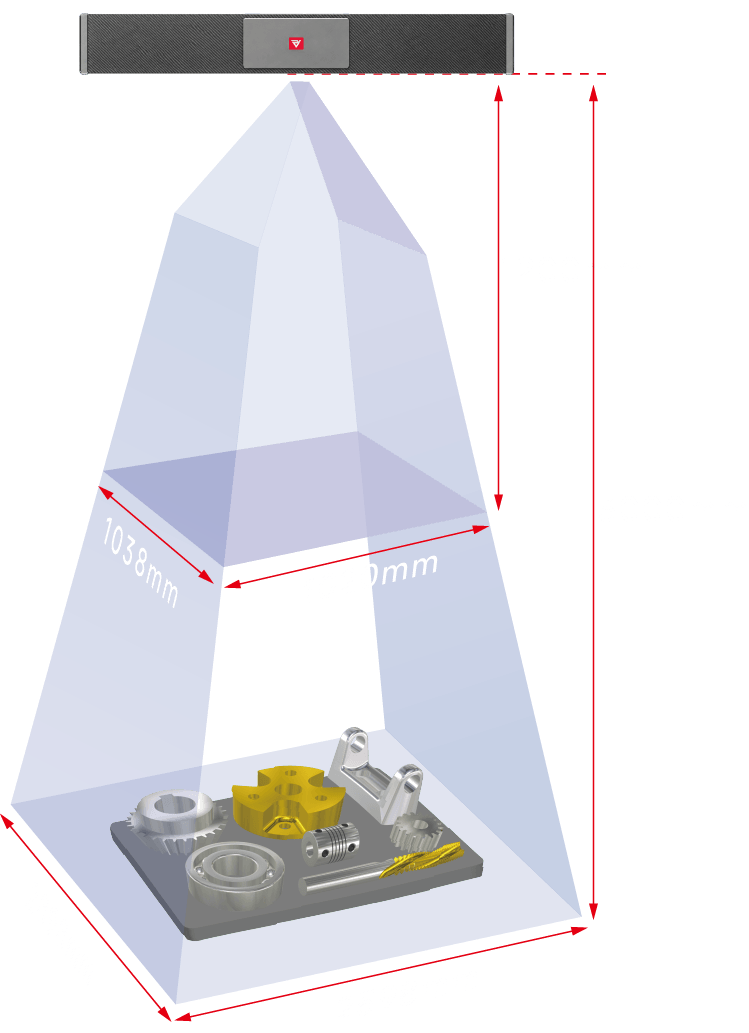

2898×2598 mm FOV at Long Range
At a 3,000 mm working distance, the M52000C covers an ultra-wide area, reducing the need to reposition the scanner when measuring buildings and large structural components.
60 fps Fixed-Line Scanning
Fixed-line scanning operates at 60 fps by default and can be configured for rates above 200 fps, enabling continuous scanning and 3D reconstruction of large-scale objects.
