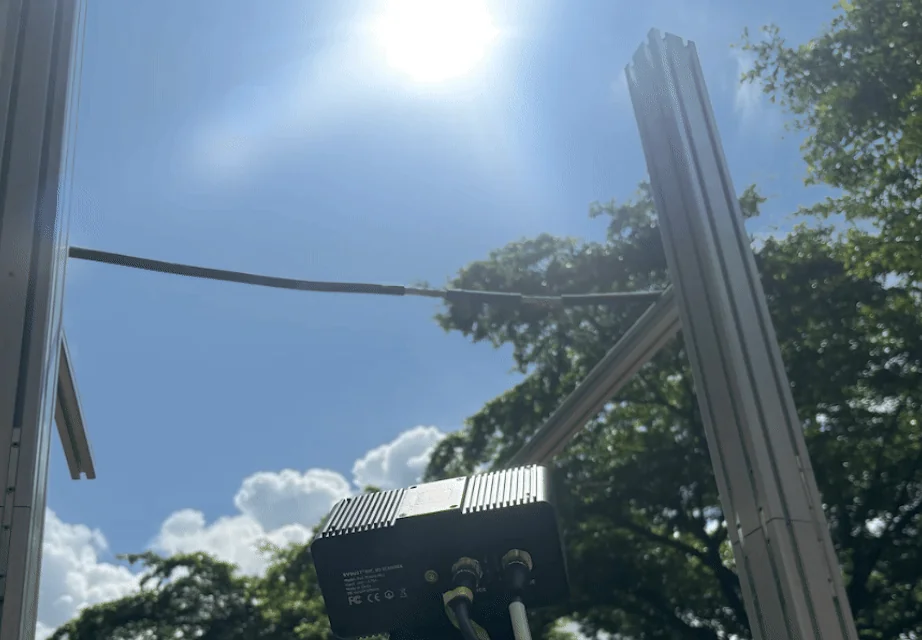

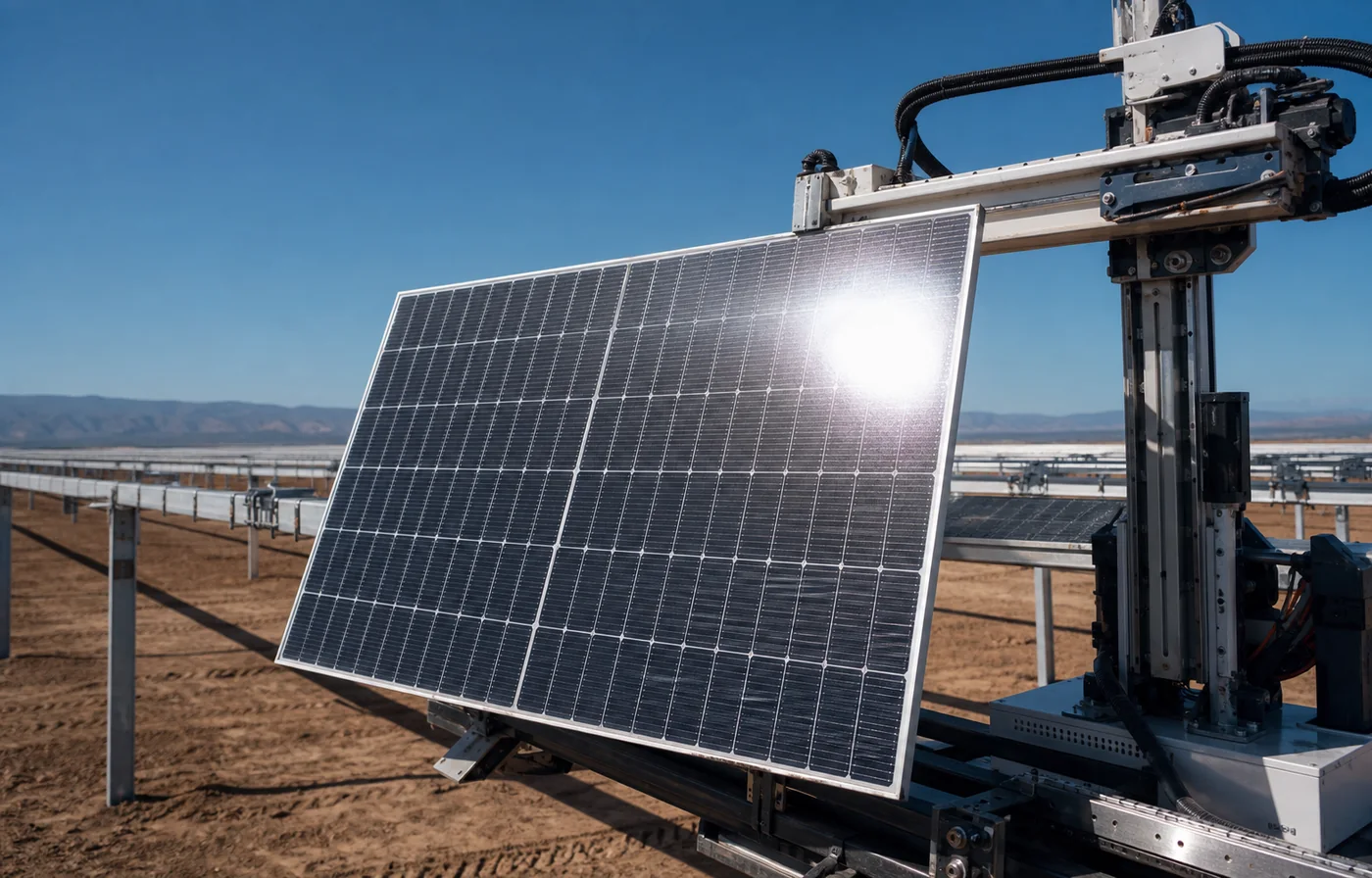

Strong Outdoor Light
Changing sunlight intensity and angles cause local overexposure, broken point clouds, and missing contours on reflective surfaces.

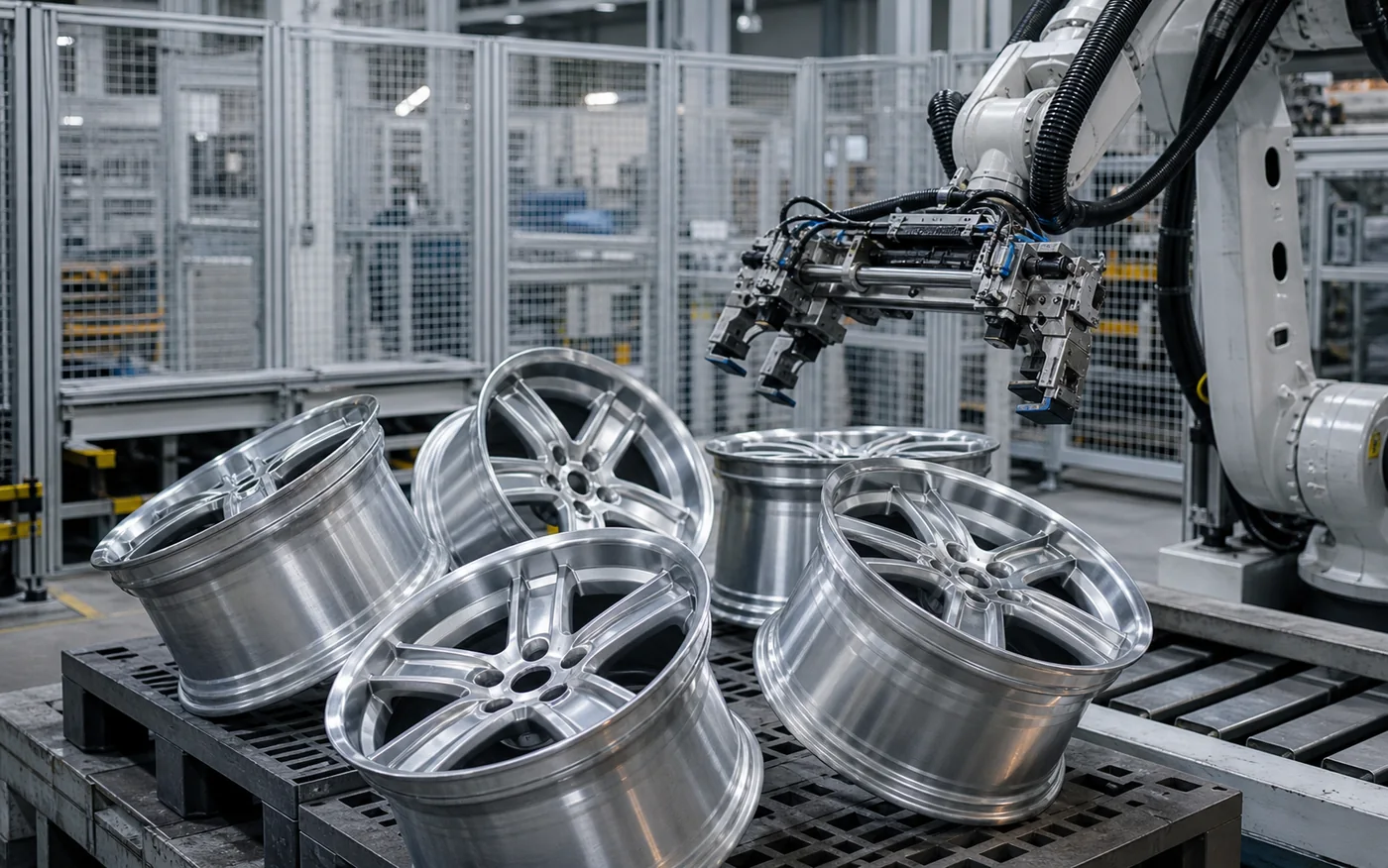

Highly Reflective Materials
Complex metal structures produce multiple reflections, with bright highlights and dark areas occurring simultaneously. Single-mode imaging result in gaps in the point cloud easily.

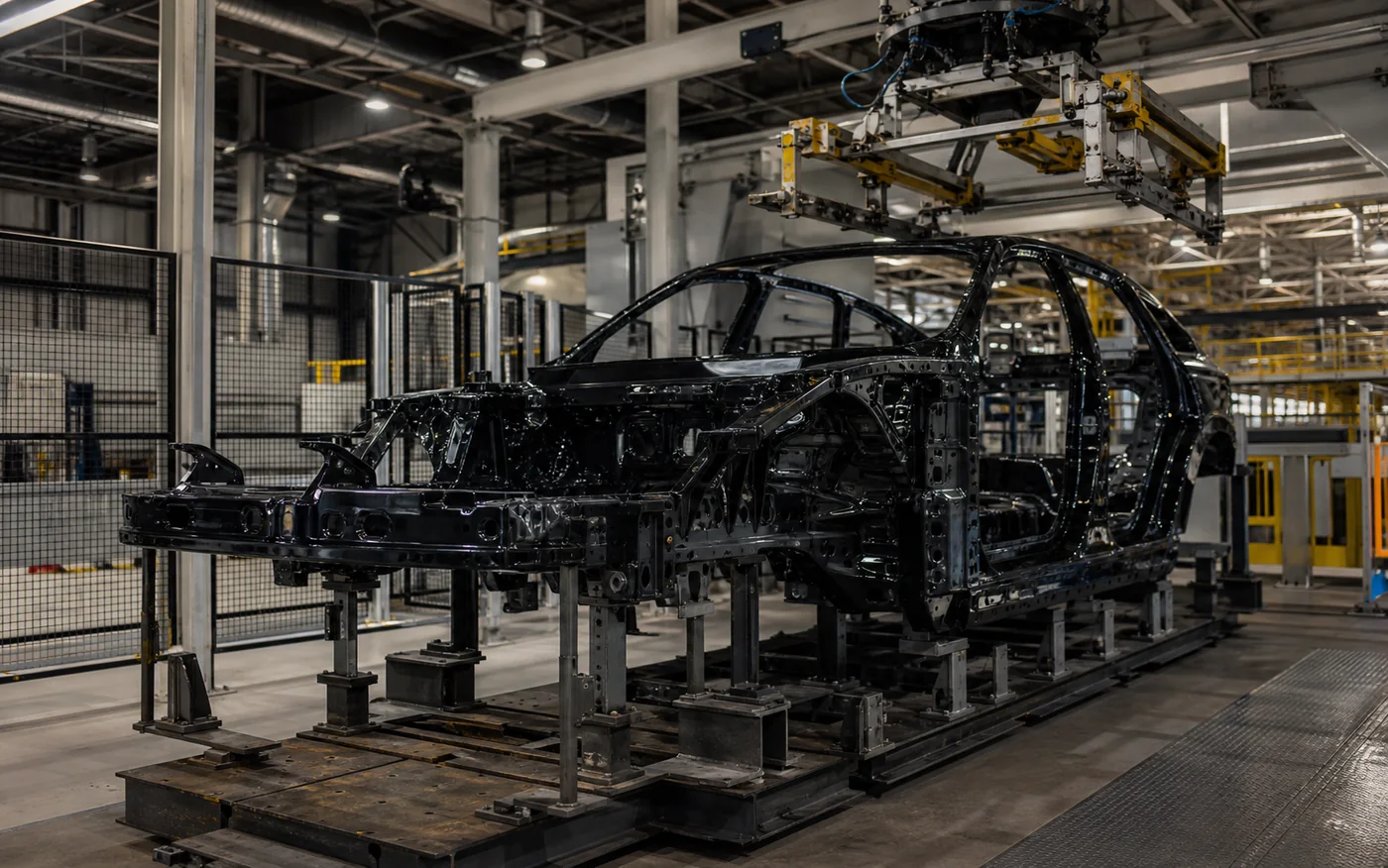

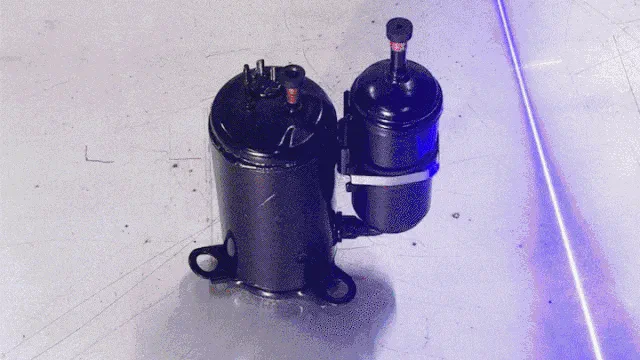

Black Painted Surfaces
Black painted surfaces combine strong light absorption with high reflectivity, making it difficult to capture deep holes, grooves, and complex edges completely in a single scan.

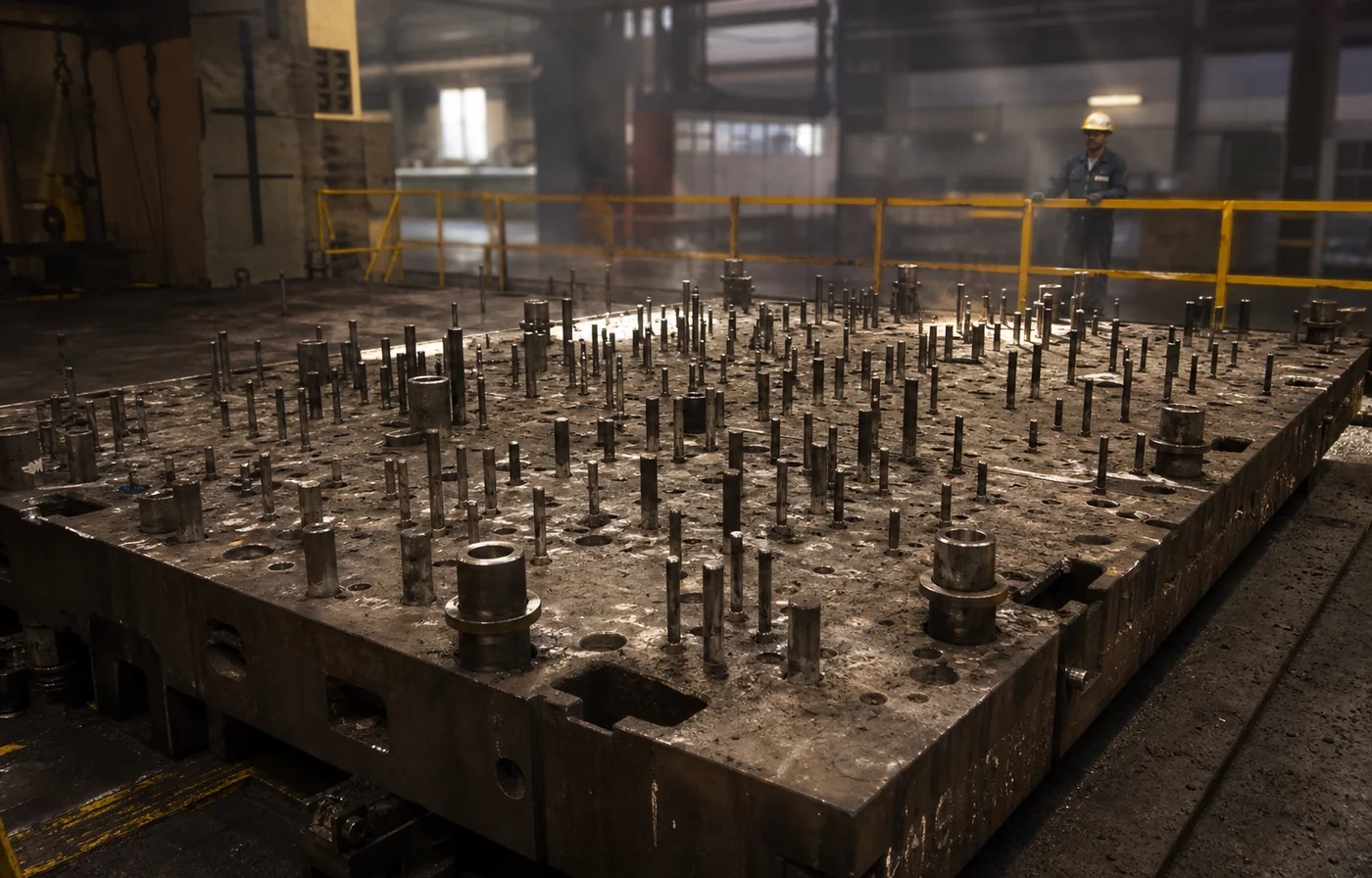

Large-FOV and Long-Range Measurement
Measuring large workpieces often requires multiple scanning positions, which increase cycle time, stitching errors, and deployment complexity.

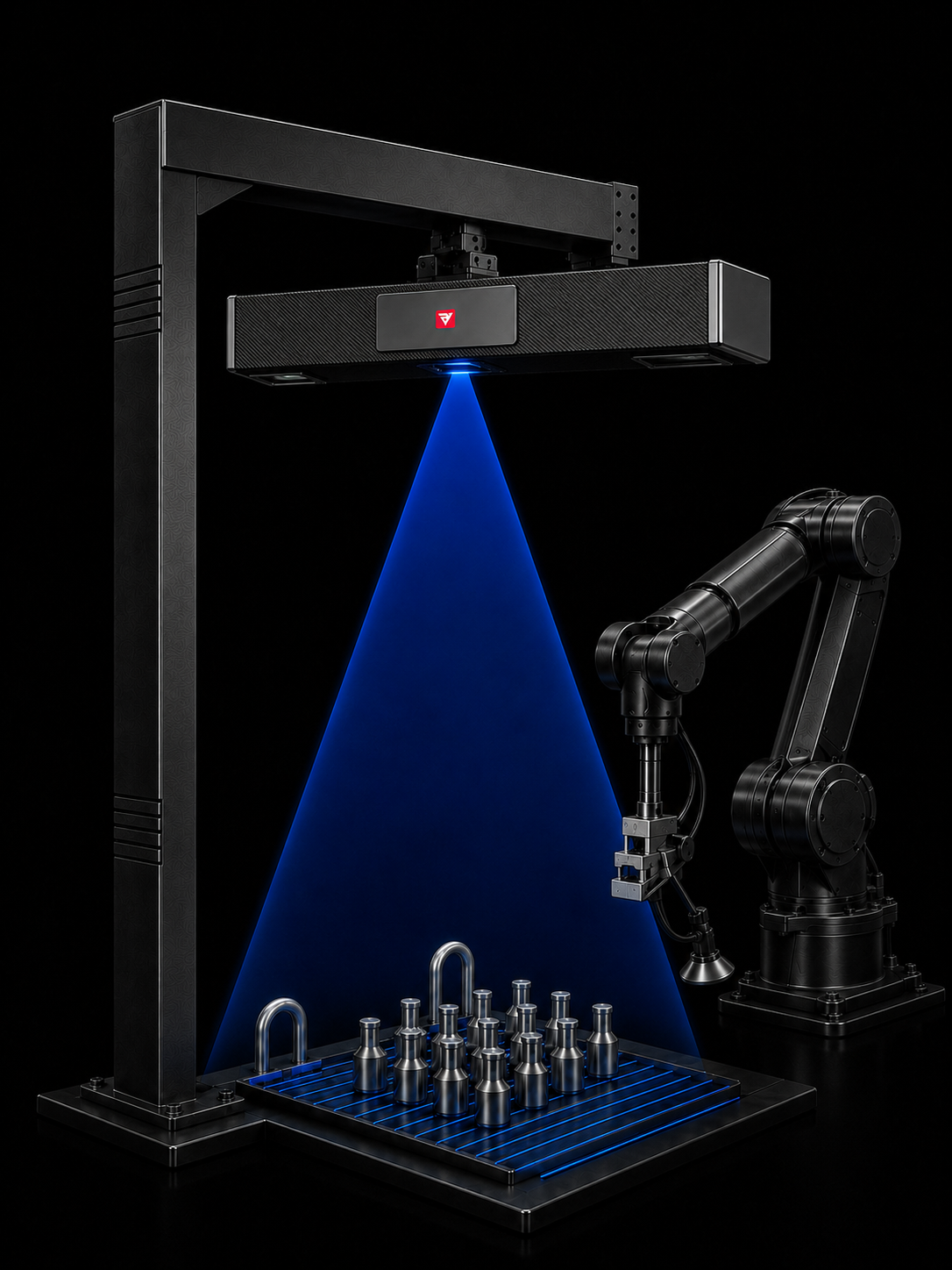

Product Features
>600,000 Lux Strong Ambient-Light Resistance
Fixed-Line Scanning and Oscillating-Line Scanning modes are designed for outdoor applications, direct sunlight, and welding arc light.

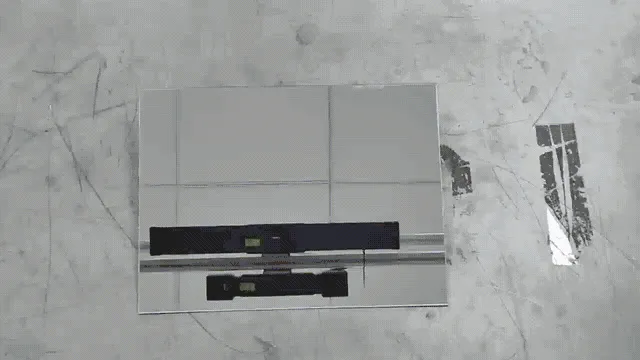

Robust Imaging Under Multiple Reflections
Complex highly reflective structures can be captured in a single exposure, which assists produce complete, high-quality point clouds.
5MP Binocular Grayscale Imaging

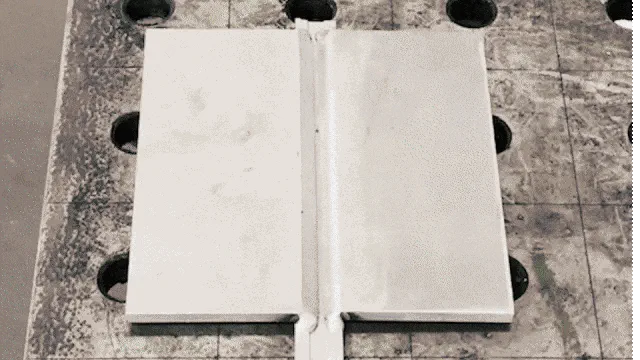

Combines wide field-of-view coverage with detailed workpiece contours, capturing complex deep holes and grooves in a single scan.

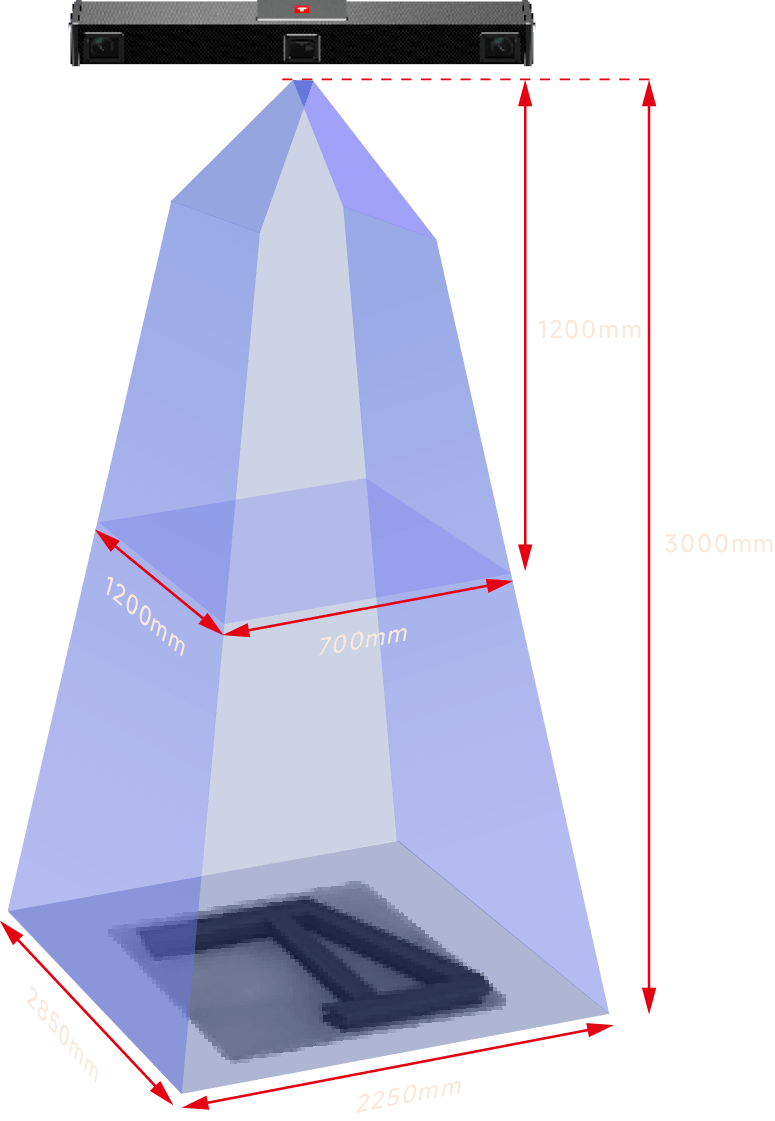

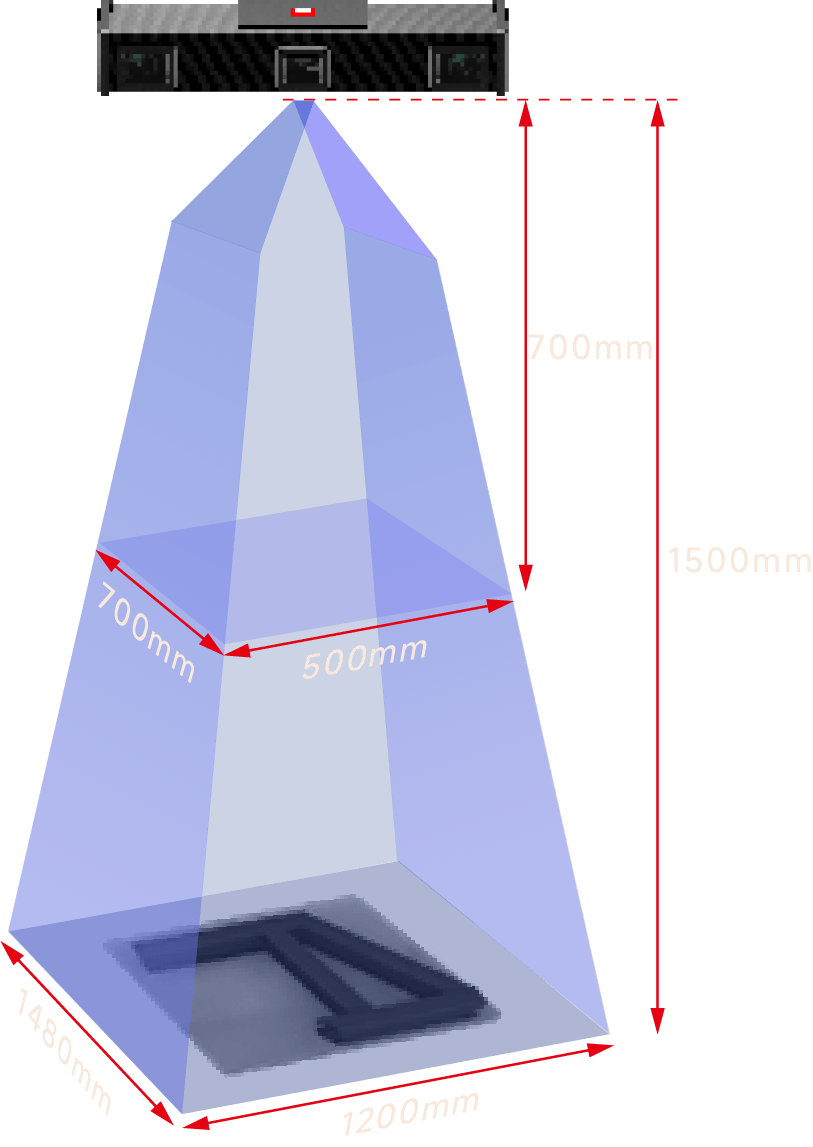

700-3000 mm Working Distance
Choose M51000 or M52000 according to the workstation, covering applications from medium-to-large fields of view to ultra-large fields of view.
